HOW A ONE-PIECE MDF CABINET DOOR IS MADE ON A CNC

A one-piece MDF cabinet door starts with something surprisingly simple: a flat sheet of MDF.

Using CNC equipment, the door's entire design is machined directly into that single piece of material. There are no separate rails, stiles, or center panels to assemble.

The result is the appearance of a traditional cabinet door without the joints found in traditional multi-piece construction.

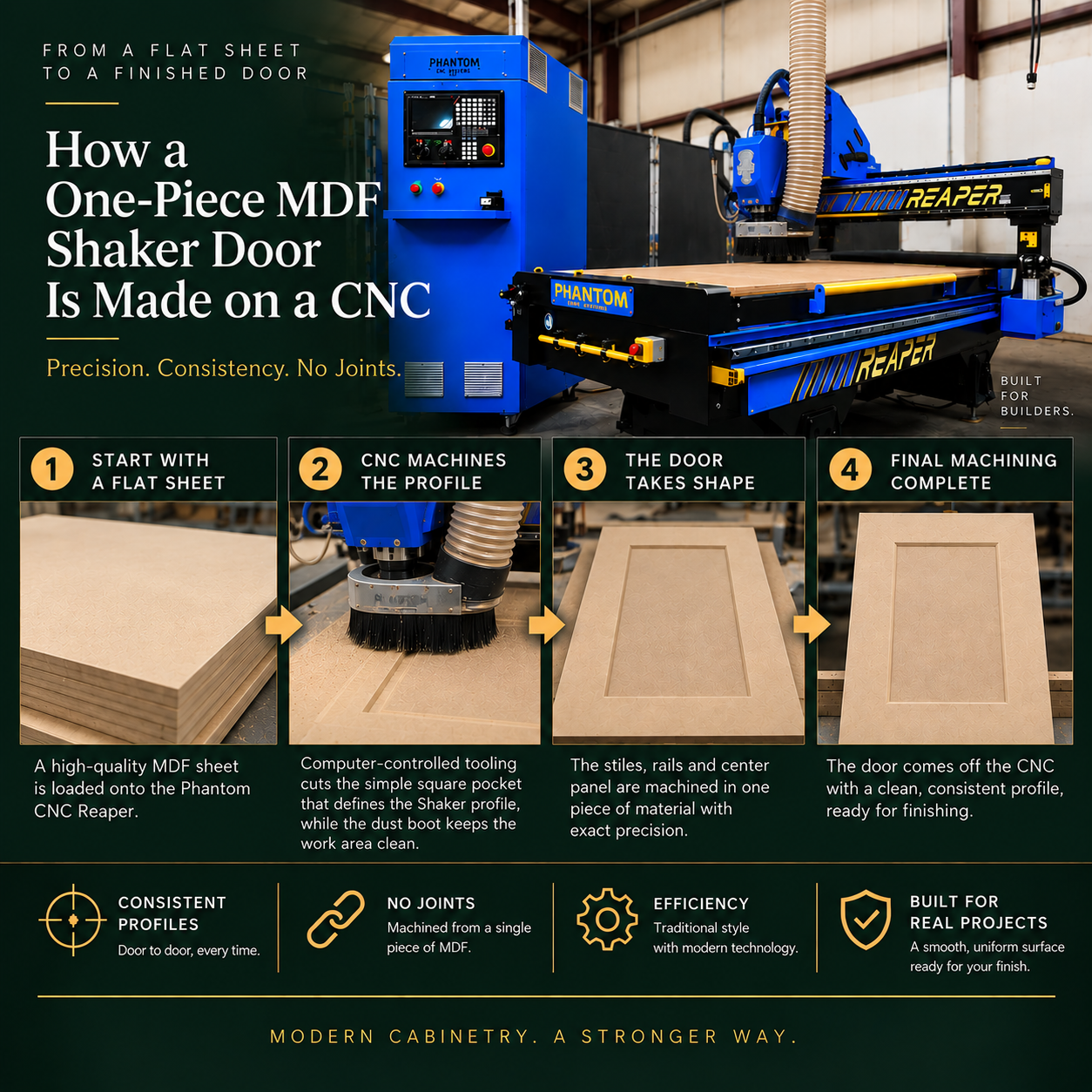

FROM A FLAT SHEET TO A CABINET DOOR

The process begins with a digital door design.

The overall dimensions, rail and stile widths, center panel, inside profile, and outside edge details are programmed before machining begins.

The MDF is then secured to the CNC table, where specialized router bits remove material to create the door profile.

For a Shaker door, the CNC machines the recessed center area while leaving the surrounding rail-and-stile appearance.

More detailed door styles may require several different cutting tools to create their profiles.

But everything remains one continuous piece of MDF.

WHY USE CNC MACHINING?

One of the biggest advantages is consistency.

Once a door style is programmed correctly, the CNC can reproduce that same profile across doors and drawer fronts of many different sizes.

That matters when an entire kitchen or cabinet project may contain dozens of pieces installed next to one another.

The doors may be different sizes, but the profile remains consistent throughout the project.

WHY MDF WORKS SO WELL

MDF has a dense, uniform construction without the knots, grain direction, and natural variations found in solid wood.

That makes it particularly well suited to detailed CNC machining.

It also allows a wide variety of painted door styles to be produced from one piece of material, from simple Shaker doors to more detailed profiles.

AFTER THE CNC

Machining is only part of producing a quality door.

After the door comes off the CNC, it still needs to be inspected and properly prepared for finishing.

Machined surfaces and edges need careful preparation before primer and paint are applied.

Good CNC work creates an accurate door. Proper preparation and finishing are what turn it into a finished cabinet component.

THE BOTTOM LINE

A one-piece MDF cabinet door begins as a flat panel and is transformed by CNC machining into the finished door profile.

Instead of assembling separate rails, stiles, and a center panel, the entire design is created from one continuous piece of material.

That gives one-piece MDF doors two important advantages for painted cabinetry:

Consistent profiles from door to door and no assembled rail-and-stile joints.

It's a modern manufacturing process that allows traditional and contemporary cabinet-door designs to be produced accurately, consistently, and efficiently.
