INSET, FULL OVERLAY & PARTIAL OVERLAY CABINETRY: WHAT'S THE DIFFERENCE?

When choosing cabinets, you may hear terms like inset, full overlay, and partial overlay.

They sound technical, but they simply describe where the cabinet doors and drawer fronts sit in relation to the cabinet face frame.

INSET CABINETRY

With inset cabinetry, the doors and drawer fronts sit inside the face-frame openings instead of covering them.

When closed, the doors and drawer fronts are nearly flush with the face of the cabinet.

The entire face frame remains visible, creating a clean, furniture-like appearance with consistent spacing around each door and drawer.

Because everything fits precisely inside the openings, inset cabinetry requires accurate manufacturing and careful installation.

FULL OVERLAY CABINETRY

With full-overlay cabinetry, the doors and drawer fronts sit on top of the face frame and cover essentially the entire cabinet face.

When the cabinets are closed, very little of the face frame is visible. What you primarily see are the doors and drawer fronts with small, intentional gaps between them.

This creates a clean, continuous appearance and works with everything from simple Shaker doors to more detailed cabinet-door profiles.

PARTIAL OVERLAY CABINETRY

Partial-overlay doors and drawer fronts also sit on top of the face frame, but they cover only part of it.

A noticeable portion of the face frame remains visible around the doors and drawers.

This creates a more traditional framed-cabinet appearance and makes the face frame a visible part of the overall design.

WHICH STYLE IS BETTER?

None of these styles is automatically higher quality.

They are simply different ways of designing the front of a framed cabinet.

If you want a flush, tailored, furniture-style appearance, inset may appeal to you.

If you want the doors and drawer fronts to cover essentially the entire cabinet face with only small gaps between them, full overlay provides that look.

If you prefer a more traditional appearance with a noticeable portion of the face frame remaining visible, partial overlay may be the better fit.

THE BOTTOM LINE

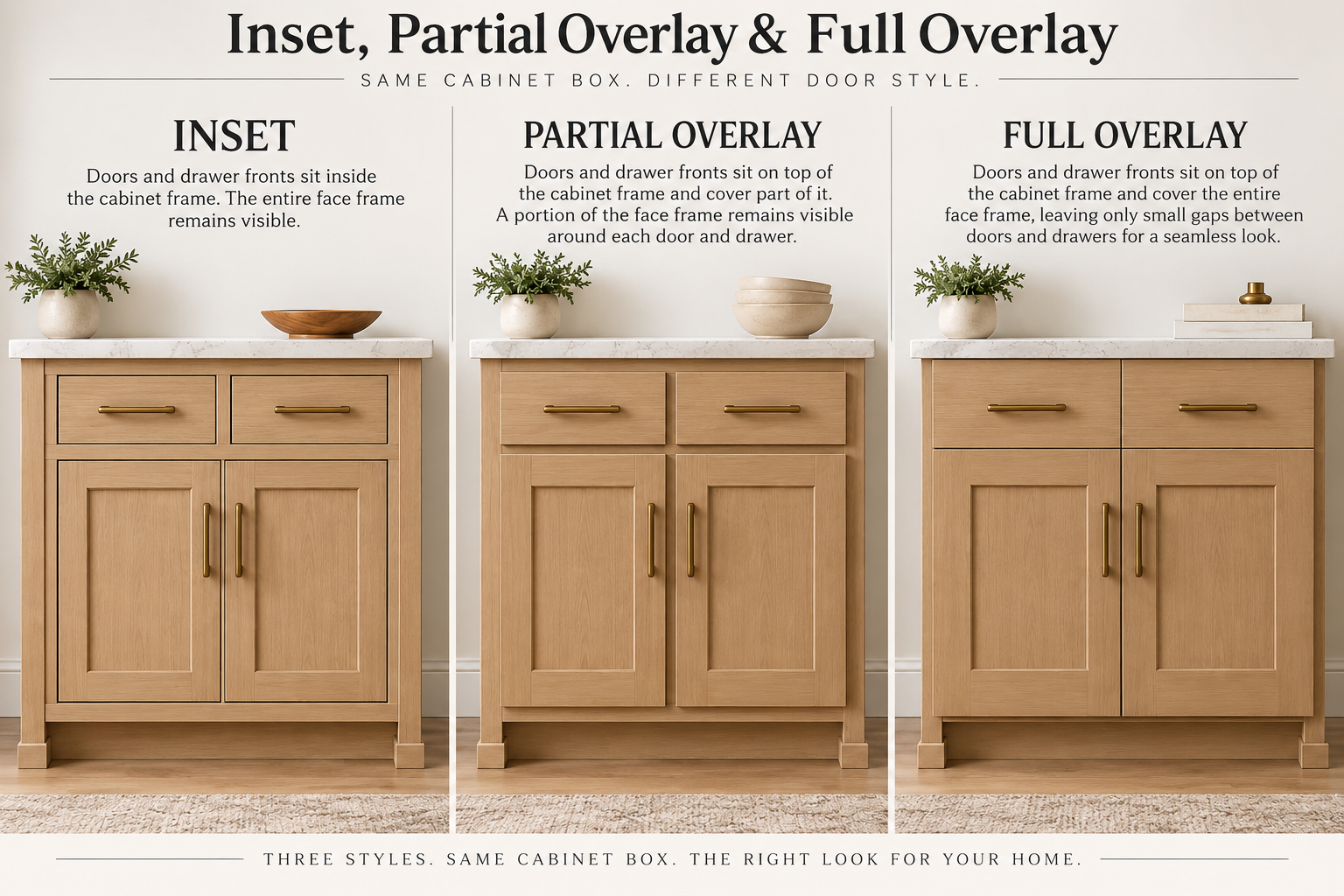

The easiest way to remember the difference is:

INSET:

The doors and drawer fronts sit inside the face-frame openings. The face frame remains visible.

PARTIAL OVERLAY:

The doors and drawer fronts sit on top of the face frame and cover part of it. Some of the face frame remains visible.

FULL OVERLAY:

The doors and drawer fronts sit on top of the face frame and cover essentially all of it, leaving only the small intentional gaps between doors and drawers.

Once you see the three styles side by side, the difference becomes much easier to understand.

The right choice comes down to the appearance you prefer and how you want the finished cabinetry to look.
